Reticulation Dianella
Reticulation Dianella — 635 jobs completed, alongside 590+ maintenance visits under commercial facilities and housing maintenance programs. One of the suburbs we know street by street.
✓ 24,000+ jobs completed across Perth · 599+ maintenance visits completed in Dianella · ★ 4.7 from 230 Google reviews
Call (08) 6263 4644 to book a repair, or book a site assessment for a new system.
Your local Dianella reticulation team
Dianella's deep grey sand repels water once it dries out, so systems here live or die on coverage and programming — and the housing stock spans everything from original gardens with layer-upon-layer wiring to fresh landscaping that wants dripline. 168 completed jobs in the last two years keep that knowledge current. Repairs are booked, not quoted over the phone; new systems and conversions are designed after a paid site assessment that's credited to the work if you go ahead.
Verge and streetscape watering rules sit with the City of Stirling — worth checking before verge retic work, and we can advise on what your council allows. Deep grey leached sand that repels water once it dries out: break the cycle with wetting agents and shorter, more frequent irrigation starts. This suburb sits on Perth's sandy coastal plain over the superficial aquifer, where garden bores are common and generally productive. Bore water isn't metered like scheme supply, so a serviced bore slashes the cost of keeping gardens green — the standard 2-day roster and June-August sprinkler switch-off still apply. Averages about 718mm a year at the Perth Metro gauge with roughly 79% falling May-September — so the controller should step down through autumn and observe the 1 June - 31 August sprinkler switch-off. Dianella is roughly 23 km from our Jandakot depot — same-week bookings are the norm, not the exception.
We’re Waterwise-endorsed and Irrigation Australia members, every job is backed by a full warranty, and we’re Perth’s most-reviewed retic specialist (rated 4.7 from 230 Google reviews).
Reticulation help in Dianella & nearby
We also look after Yokine, Nollamara, Tuart Hill, Bedford, Coolbinia, Inglewood, Westminster and the wider Perth metro. Read our pricing guide or call to get started.
Nearby: Yokine · Nollamara · Tuart Hill · Bedford · Coolbinia · Inglewood · Westminster
What does Dianella’s soil and water mean for your retic?
Soil — Bassendean sands. Ancient, heavily leached dune sand — expect non-wetting patches and fast drainage. Matched nozzles, soil wetters and frequent short cycles keep it green.
Groundwater & bores. Sandy soils over shallow groundwater make this classic garden-bore territory; running retic from a bore takes garden watering off the scheme-water bill. Bores follow the same 2-day roster and winter switch-off as scheme users.
Rainfall — about 718mm a year. Around 718mm falls annually (Perth Metro data), close to 79% of it May-September; gardens rely almost entirely on reticulation from November to March, when scheduling accuracy matters most.
Sources: DPIRD-064 Soil Landscape Systems (SLIP) · DWER Perth Groundwater Map / Water Corp groundwater areas (band-level) · BOM station 009225 Perth Metro climate averages · Water Corporation watering roster (verified Jul 2026)
Customer stories from Dianella
The dead pump nobody actually needed
A Dianella front garden was being replanted, and the retic was dead. On site we found a submersible bore pump that had been tagged out and wasn't operational — and underneath the story, an older scheme-water connection running off a tap stem. The easy sell would have been a new pump. For garden beds this size, a pump was overkill.

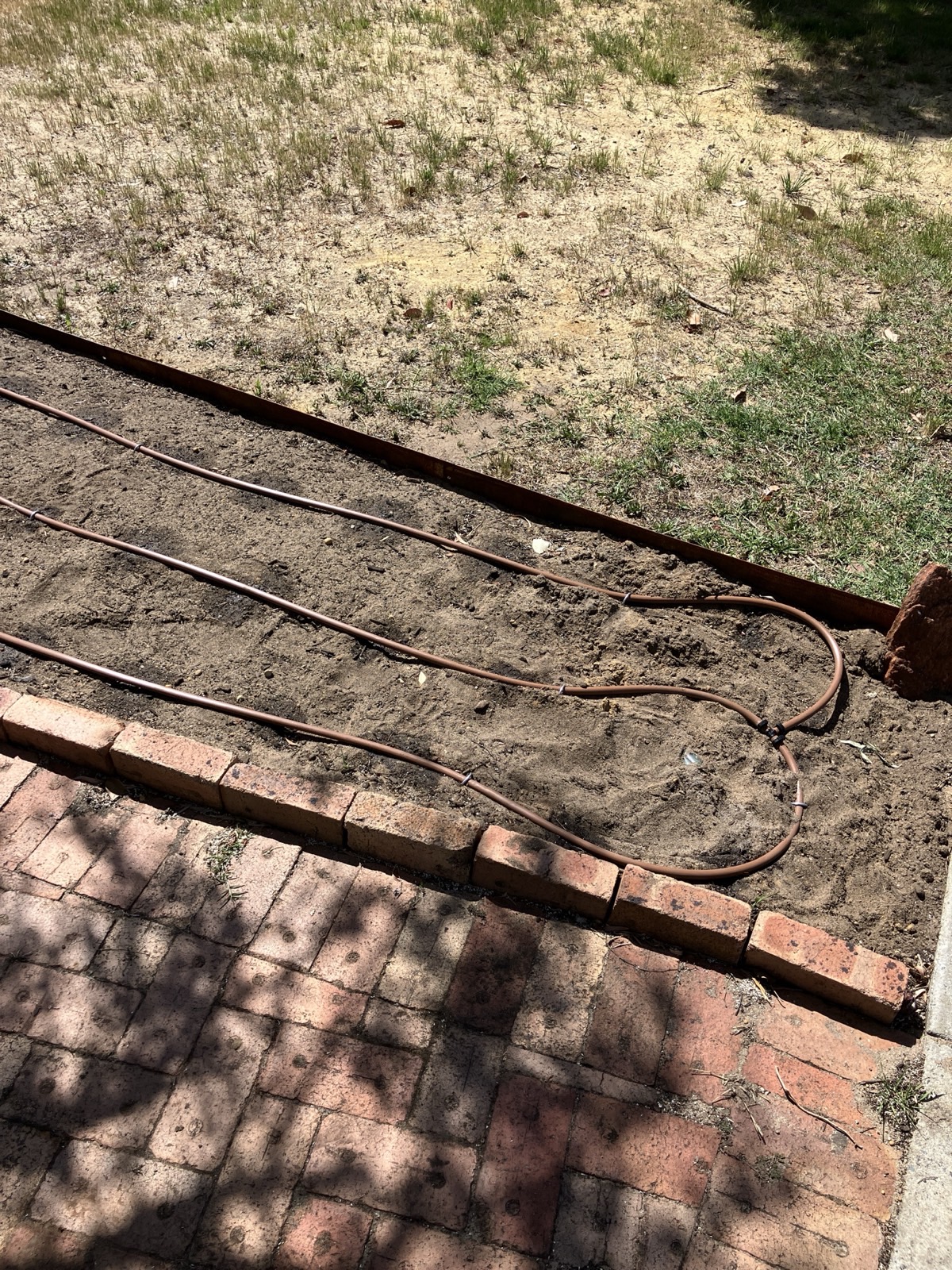

So we recommended the cheaper-to-run, right-sized path: reconnect the scheme supply instead of replacing the pump, and design the watering around the new planting. After talking through the plans with the client's landscaper, we built a dripline system to suit: a new four-station controller wired in by the electrician, new solenoid valves off the existing mainline, a pressure-regulated feed and 13mm dripline at 350mm spacings, surface-laid ready to be hidden under mulch. Water at the roots, no pump to maintain.
Three wiring runs and two valves stuck open

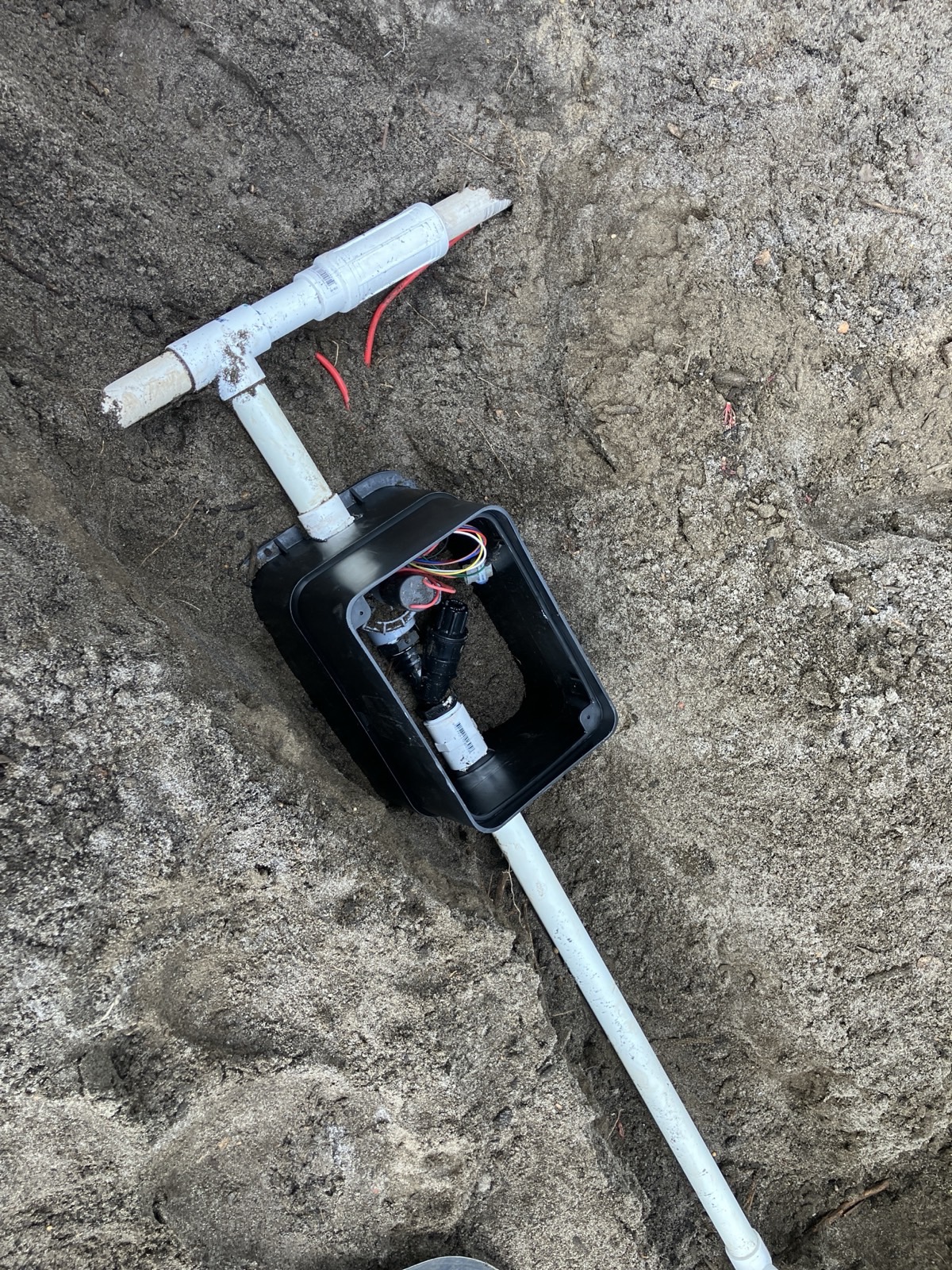

The job was to add a station so the lawn and garden stopped sharing one valve. We cut a new 40mm valve in beside the existing one, replaced and extended the 20mm line through the lawn, relocated the existing pop-ups and added new ones on the far side, all running MP Rotators for even coverage.
Then the wiring got interesting: three spare wires at the valve, none of them joined anywhere in the field — and the controller, station 1 and station 2 all running on different wiring. System checks showed water running through every zone no matter which station was on: both valves stuck open. Cleaning them out didn't hold, so we cut both out and fitted new 40mm valves. Retested until everything ran only when it was told to.
Bringing a disconnected strip back to life
A state housing provider asked us to reinstate a reticulation line that had been disconnected for years — a landscaping strip along one boundary and the front beds serving the rear units, with a survey plan marking the line they wanted live again.
Two technicians spent the first hours testing by process of elimination whether the old line could simply be recommissioned. It couldn't — and the site's controller was damaged beyond use. So we re-worked what was worth keeping: modified the existing pipework, capped the redundant run, and set the beds up on two individually controlled tap timers with new pipe, risers and micro jets where coverage was missing. The strip that hadn't seen water in years came back on, bed by bed.
And week in, week out
The stories above are the exceptions — the everyday is volume. 635 jobs completed in Dianella, 168 of them in the last two years, alongside 590+ maintenance visits under commercial facilities and housing maintenance programs. If a Dianella system can fail a certain way, odds are we've already fixed one just like it.
Need the same kind of help? Book a repair or arrange a site assessment.
Our work in Dianella
Reticulation Repairs in Dianella
Broken pop-ups, a leaking solenoid, dry patches or a controller that’s lost the plot? Our fully-equipped technicians diagnose and fix most Dianellafaults on the spot. We don’t quote repairs over the phone – just call us and we’ll book a visit.
New Systems in Dianella
Putting in a new lawn or upgrading a tired system? We design and install fully automated, waterwise reticulation for Dianellahomes. Book a paid site assessment (fully credited to your install if you proceed) and we’ll quote the job.
What Dianella customers say
“We are very pleased with the work Slade did for us.”
